Custom Positions in your org chart

How and when to use custom positions

Custom positions are used in TeamOrgChart to indicate different position types, such as an assistant, coordinator or a joint-manager.

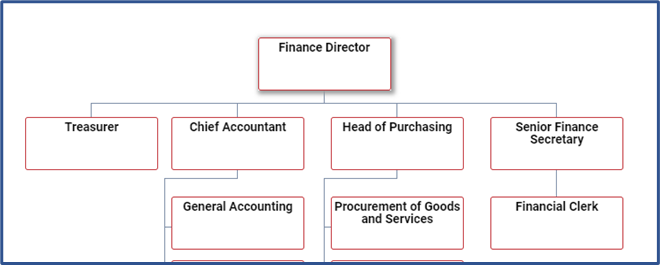

Chart with no custom position defined.

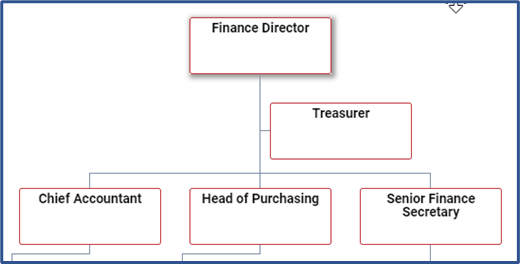

“Treasurer” defined as an assistant.

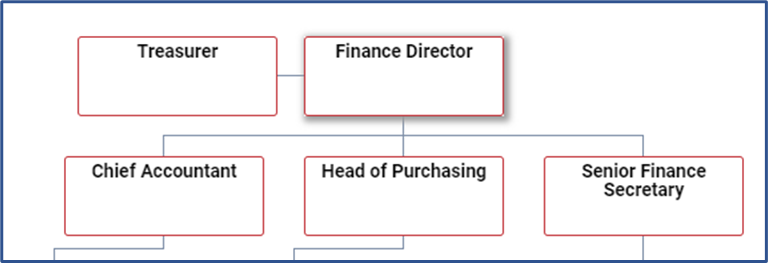

“Treasurer” defined as a coordinator.

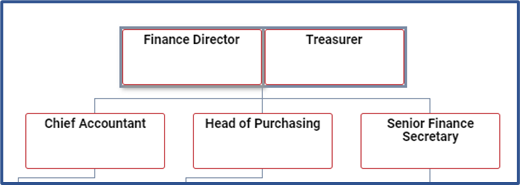

“Treasurer” defined as a joint manager.


There are two ways to define custom positions with TeamOrgChart.

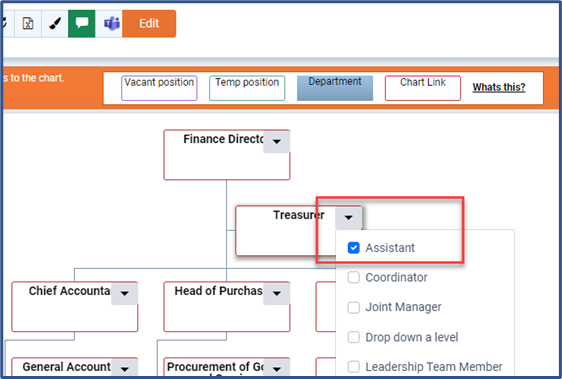

Via the Context Menu

  • Place the chart in Edit Mode ( CTRL+E ).
  • Open the context menu of the person you wish to define as a custom position.
  • Select or deselect the position type from the menu.

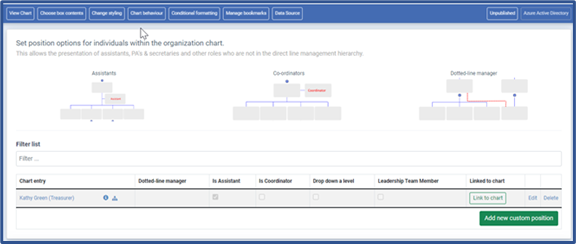

From the Custom Positions Page

  • From the Actions menu, select Custom positions.
  • Then Create, edit or delete custom positions in the table.


Note: Custom positions are preserved between data re-loads.

Uploading a new data sheet when using an Excel based chart or when the chart refreshes from Entra Id will not impact the custom positions.

Screenshot
Recommended Steps
arrow_circle_right
Identitfy staff members who should have a custom position
